Rf 5 Channel Remote Control Based Wireless Home Automation i.e. Lights / Fans On / Off Module

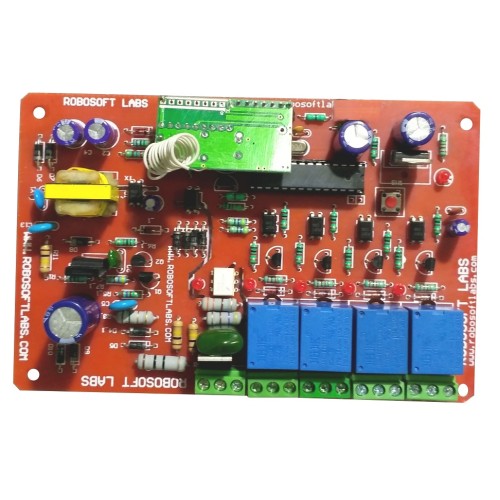

RF Remote control is a combination of RF Transmitter and Receiver which contains 4 Relays and 1 TRiAC output which can be controlled wirelessly. This makes the unit very easy to operate and integrate with existing systems. The remote control operates the corresponding relay on the receiver board, i.e. (Light 1 operates relay 1), (Light 2 operates relay 2), etc. Relay contact can control any equipment in Latch Mode (Toggle on each key press). Each relay has indicator LED showing the ON/OFF status.


SPECIAL FEATURE - Memory backup EEPROM Saves the Last Condition of Relays and Triac so that when Power Fails and Resumes, all the settings will be retained.

Comes with Custom Built SLEEK REMOTE as shown in picture

Features:

• 100% BRAND NEW and TESTED
• 5 Device Control Output.
• Can be used directly to control 240V power appliances such as Lights, Fan, Projectors etc.
• Each Relay can switch ON or OFF individually
• Equipped with four 7A / 250AC Relays
• Equipped with one 4A / 250AC Triac
• Each Relay can control any equipment in Latch Mode (Toggle on each key press).
• Relay contacts are brought out as Screw Terminals
• Remote operating range up to visible distance (100 meters)
• Press any one of the buttons A, B, C and D on remote controller, the corresponding light or socket is powered , another press will switch it off. Each relay channel can be used individually.
• Combination of two button/switch to switch triac ON/OFF.
• Compact 27A +12v Battery Operated Remote
• Receiver Indicates output status by LED
• Receiver operates from 230V AC Supply.
• Relay contacts are brought out as Screw Terminals
• High Quality Unbreakable PCB that can easily be mounted inside regular switchboard at home or office
• Board Dimension: 14.3 x 9.3 CM

Applications:

• Wireless Remote control of Lights and Fan at home or office
• Wireless Remote control of Projectors and speaker system in multimedia
• Security and burglar alarm systems
• Control of motors and system in Robotics
• Smoke and fire alarm systems
• Garage door controllers
• Car door controllers
• Other remote control systems

Specifications:

Transmitter (Remote):

• Operating Voltage 27A +12.0V Battery
• Range of Operation Approx 100 Meters

Receiver:

• Operating Voltage 230V AC

Package Contents:

RF 5 Channel Remote Control Based Wireless Home Automation i.e. Lights / Fans On / Off Module

1 x Remote Control (same as shown in picture)
