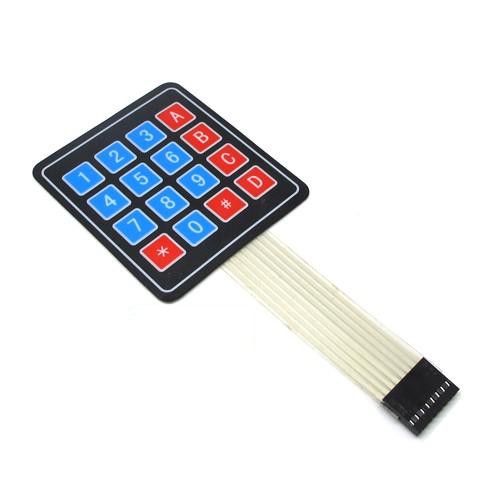

Membrane Type Keypad - 16 Key - 4x4 Matrix
4 x 4 Matrix Membrane Keypad

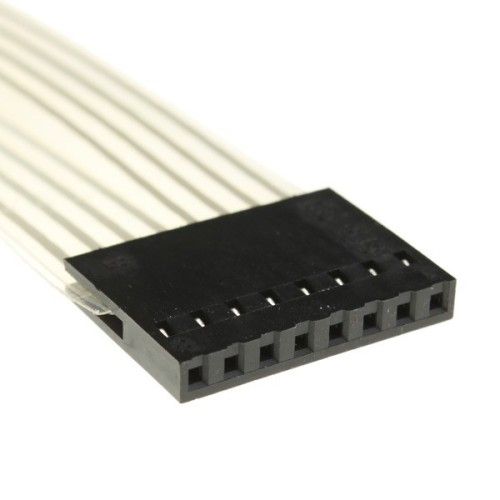

8 pin connector
Adhesive mounting
Maximum Circuit Rating: 35VDC, 100mA
Insulation Resistance: 100M Omh, 100V
Dielectric Withstand: 250VRms (50-60Hz, 1min)
Contact Bounce: <=5ms
Life Expectancy: 1 million closures
Operation Temperature: 0 to +70 centigrade
Humidity: 40 centigrade, 90%-95%, 240 hours
Pad Size (L x W): Approx. 3 x 2.7 inch / 76 x 69 mm
Fexible Circuit Length: Approx. 3.3 inch / 83 mm
Membrane Type Keypad - 16 Key - 4x4 Matrix
- Brands Robosoft Labs
- Product Code:SKURL348
- Availability:In Stock
- ₹474Rs
-
₹222Rs
